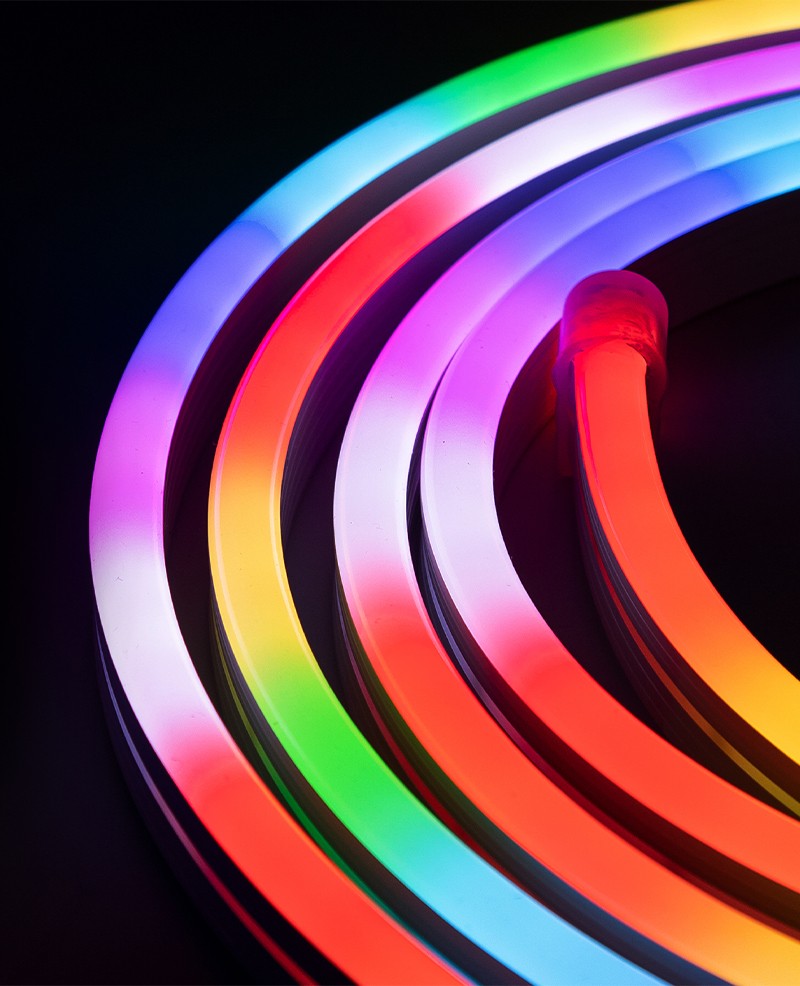

Top Bend Neon Flex
Dimension: 15*15/ 15*16/ 12*12mm for optional
Color: Single color, CCT tunabel, SPI-RGB, DMX-RGB/RGBW for optional
Bending direction: Top bend
Application: Landscape lighting, indoor/outdoor usage, decorative lighting
Warranty: 3years or 5 years for optional
Certificate: CE, UL, RoHs
| Part No. | IP level | LED type | LED | Driving method | working voltage (V) | LED/M | Light Efficacy （LM/W) | Watt/M | PCB | |||||
| Ra | SDCM | CCT | ||||||||||||
| Width (mm) | Height | Min. Unit | ||||||||||||
| RL-FV2410120283508-XXX-FWD1212 | IP67 | 2835 | 80/90 | <3 | 2700-6500K | C.V. | 24V | 120LED/M | 50-55lm/W | 8W/M | 10mm | 2oz | 6LED/cut | 50mm/cut |
| RL-FV2410140283508-XXX-FWD1212 | IP67 | 2835 | 80/90 | <3 | 2700-6500K | C.V. | 24V | 140LED/M | 50-55lm/W | 8W/M | 10mm | 2oz | 7LED/cut | 50mm/cut |
| RL-FV2410060505008-RGB-FWD1212 | IP67 | 5050 RGB | / | / | RGB | C.V. | 24V | 60LED/M | / | 8W/M | 10mm | 2oz | 6LED/cut | 100mm/cut |
| RL-FV2410060505012-SPI-FWD1212 | IP67 | 5050 RGB SPI | / | / | RGB | C.V. | 24V | 60LED/M | / | 12W/M | 10mm | 2oz | 6LED/cut | 100mm/cut |
| RL-FV2410060505012-DMX-FWD1212 | IP67 | 5050 RGB DMX | / | / | RGB | C.V. | 24V | 60LED/M | / | 12W/M | 10mm | 2oz | 6LED/cut | 100mm/cut |
| RL-FV2410120283508-XXX-FWD1515 | IP67 | 2835 | 80/90 | <3 | 2700-6500K | C.V. | 24V | 120LED/M | 50-55lm/W | 8W/M | 10mm | 2oz | 6LED/cut | 50mm/cut |
| RL-FV2410140283508-XXX-FWD1515 | IP67 | 2835 | 80/90 | <3 | 2700-6500K | C.V. | 24V | 140LED/M | 50-55lm/W | 8W/M | 10mm | 2oz | 7LED/cut | 50mm/cut |
| RL-FV2410060505008-RGB-FWD1515 | IP67 | 5050 RGB | / | / | RGB | C.V. | 24V | 60LED/M | / | 8W/M | 10mm | 2oz | 6LED/cut | 100mm/cut |
| RL-FV2410060505012-SPI-FWD1515 | IP67 | 5050 RGB SPI | / | / | RGB | C.V. | 24V | 60LED/M | / | 12W/M | 10mm | 2oz | 6LED/cut | 100mm/cut |
| RL-FV2410060505012-DMX-FWD1515 | IP67 | 5050 RGB DMX | / | / | RGB | C.V. | 24V | 60LED/M | / | 12W/M | 10mm | 2oz | 6LED/cut | 100mm/cut |
