- 320 flip-chip LEDs in linear array, monolithically encapsulated
- LED chips directly mounted on FPCB, 170° wide viewing angle
- High-thermal-conductivity FPCB design, flexible for effortless bending and installation

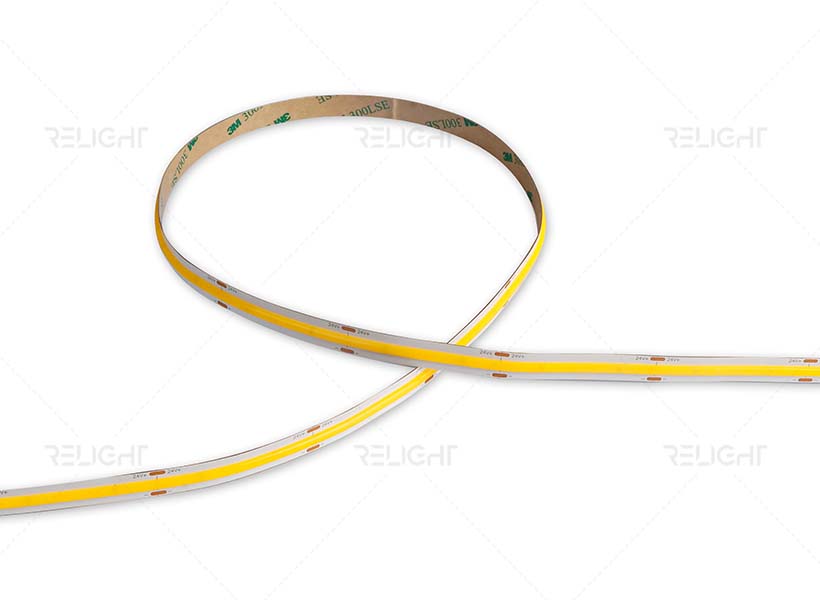

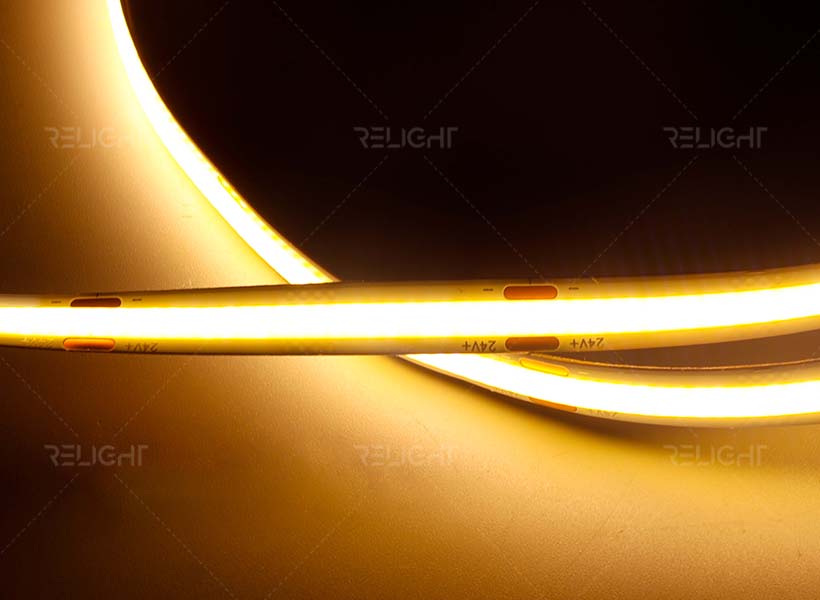

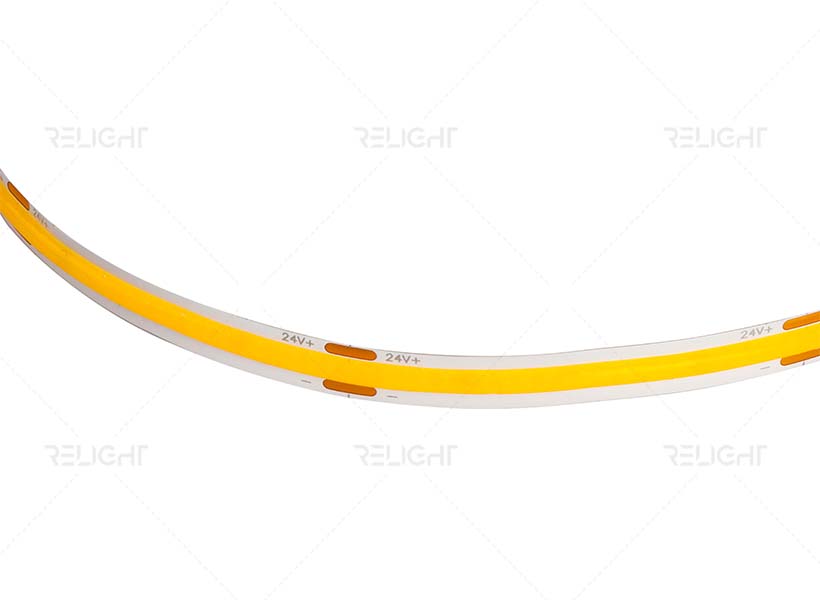

COB Strip Series 320D LED Strip
ODM Customization
Product Description
| LED Quantity |
CCT k |
CRI | LED (SM) |
LUMENS (lm/m) |
VIN (v) |
Current (mA/M) |
Power (W/M) |
Cut Length (MM) |
Max Run (M) |
| 320 | 2600-2800 | 90 | COB | 720 | 24 | 333 | 8 | 50 | 5 |
| 320 | 2800-3200 | 90 | COB | 720 | 24 | 333 | 8 | 50 | 5 |
| 320 | 3850-4250 | 90 | COB | 720 | 24 | 333 | 8 | 50 | 5 |
| 320 | 6100-6600 | 90 | COB | 720 | 24 | 333 | 8 | 50 | 5 |
